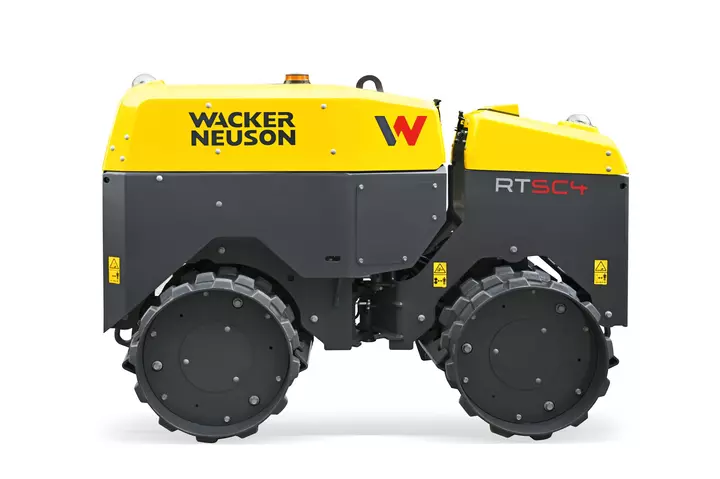

RTD-SC4: New Look; Proven Compaction

The RT trench roller with the SC4 remote control provides proven compaction performance with greater serviceability, durability, and a best-in-class operator experience. With greater access to hydraulic components and fewer parts, the RT trench roller offers high reliability and a lower cost of ownership. The intuitive remote control with an LCD display puts the data and controls in the operator's hands, eliminating the need to enter trenches, which enhances worksite safety.

Infrarød sigtelinje

  • Operatøren og betjeningsenheden skal vende mod maskinen for at kunne køre, hvilket øger opmærksomheden og sikkerheden på arbejdsstedet.
  • Operatør- og maskinsikkerhed er i fokus med nærhedsbaseret betjening, hvor operatøren betjener maskinen stående 2 m til 20 m fra den.

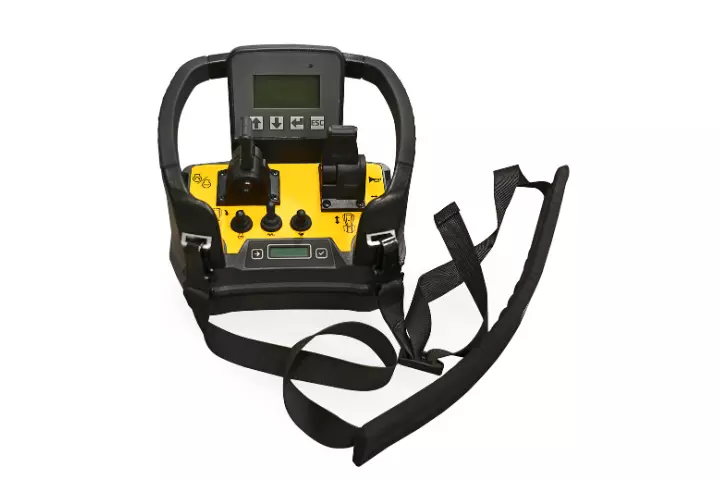

Personlig fjernbetjening med alle funktioner

  • Operatøren har adgang til alle styreenheder til opstart og betjening af maskinen, og dermed undgås farerne ved at betjene komprimeringsudstyret i en udgravning eller i nærheden af andet udstyr.
  • Takket være det forbedrede radiosignal kan maskinen kommunikere med fjernbetjeningen, der anvender en LED-skærm til at vise operatøren maskinens status, påmindelser om vedligeholdelse og fejlkoder til hjælp ved fejlfinding.

Patent Pending Return to Center

  • The machine will guide itself back to traveling in a straight line, without operator assistance, which is beneficial when working in applications with extended trenches, such as utility work.
  • The operator can turn this function on and off with a push of a button directly on the remote control.

Tip Over Protection

  • If the machine is nearing its tipping angle, the operator will be alerted with a pre-tip notification on the remote control's LED screen. In the event that the machine does tip over, an alarm will be transmitted and the engine will shut down.
  • A two step unlocking process through the remote control protects the machine from engine damage that can occur by being started after tip-over.

Service Accessibility

  • Hydraulic components, motors, and connections are located on the outside of the drum making them more accessible.
  • Maintenance-free, the permanently lubricated exciter and drive systems require no oil changes for the first life, reducing downtime and total cost of ownership.
  • Wide opening hoods provide easy access to all other machine components, reducing time and effort for daily cleaning and maintenance tasks.

Flere funktioner

Flexible Drum Width

  • Dual section drums offer flexible operating widths, easily converting from 82 cm to 60 cm. Depending on application needs, the design allows for a single machine to operate at two different widths to accommodate varying field conditions or workspace requirements.

On Board Battery Charger

  • An on-board charger helps ensure that the remote control has available power at all times on the jobsite. Two batteries come with the remote control, so that one can be conveniently charging, even while the machine is in use.
  • The LED display on the remote control screen will notify if the second battery is not located in the charger.

Patent Pending Scraper Bar

  • The patent pending internal drum scraper bar loosens any built up debris inside the drum and keeps the drum from seizing up. Once dried, the debris will exit the drum.

Horn and Strobe Beacon

  • With jobsite safety as a priority, the machine is equipped with a strobe beacon and horn to signal to the operator and others that it is ready to use.
  • To minimize the potential of battery draw over an extended amount of time, the strobe beacon will remain on to remind the operator to fully shut down the machine.

Fuldt kompatibel europæisk maskine

  • Opfylder sikkerhedsstandard EN474-13.
  • Som en del af standardkravene skal fjernbetjeningen bruges inden for 30 grader fra vandret plan. Det sikrer, at der er frit udsyn mellem fjernbetjeningen og maskinen, så arbejdet kan udføres sikkert på arbejdsstedet.
