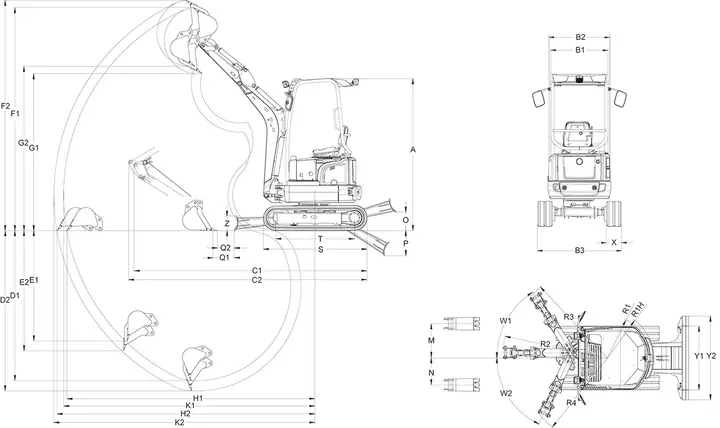

| A1 | Height | 2,360 mm |
| A2 | Total height of cabin with rotating beacon | 2,538 mm |
| B1 | Width of upper carriage | 980 mm |
| B2 | Width of cab | 885 mm |
| B3 | Width travel gear extended | 1,300 mm |
| B4 | Width travel gear retracted | 990 mm |
| C | Transport length | 3,585 mm |
| D | Digging depth max. | 2,330 mm |
| E | Piercing depth max. | 1,715 mm |
| F | Piercing height max. | 3,465 mm |
| G | Dumping height max. | 2,440 mm |
| H | Digging radius max. | 3,900 mm |
| I | Max. reach at ground level | 3,850 mm |
| J | Tail swing radius | 650 mm |
| J | Tail swing radius with tail weight | 725 mm |
| K1 | Boom offset max. (to center of bucket right side) | 535 mm |
| K2 | Boom offset max. (to center of bucket left side) | 425 mm |
| L | Stacking height max. (dozer blade above surface) | 271 mm |
| M | Digging depth max. (dozer blade below surface) | 390 mm |
| N | Length travel drive | 1,607 mm |
| O1 | Max. swivel angle (arm system to the right) | 57 ° |
| O2 | Max. swivel angle (arm system to the left) | 65 ° |
| Q1 | Boom swing radius center | 1,625 mm |
| Q2 | Boom swing radius right | 1,515 mm |
| Q3 | Boom swing radius left | 1,370 mm |
| R | Distance bucket dozer blade, short shovel arm | 332 mm |
| R | Distance bucket dozer blade, long shovel arm | 260 mm |
EZ17
