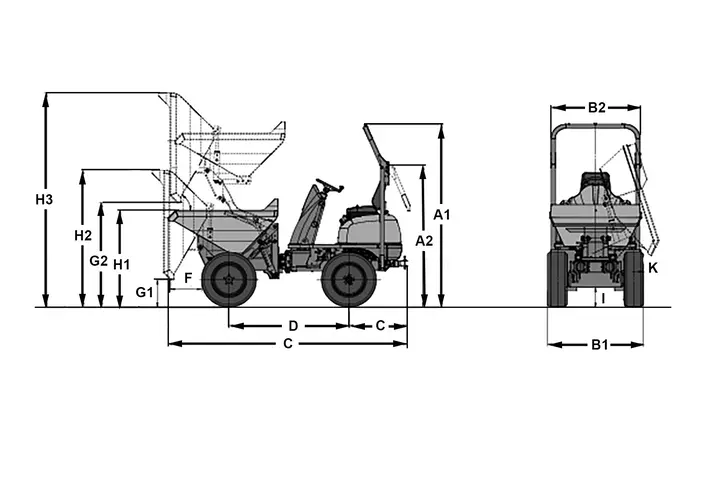

| High tip skip | Swivel tip skip | ||
| A1 | Height ROPS | 2,550 mm | 2,550 mm |
| A2 | Height of ROPS tilted | 1,960 mm | 1,960 mm |
| B1 | Width of vehicle | 1,350 mm | 1,305 mm |
| B2 | Width of skip | 1,225 mm | 1,260 mm |
| C | Total length ROPS | 3,300 mm | 3,220 mm |
| D | Wheel base | 1,650 mm | 1,700 mm |
| E | Rear overhang | 810 mm | 810 mm |
| F | Dumping width | 400 mm | 280 mm |
| G1 | Dumping height max. | 370 mm | 680 mm |
| G2 | Dumping height max., high tip skip raised | 1,450 mm | |
| H1 | Skip height | 1,345 mm | 1,300 mm |
| H3 | Skip height tilted, high tip skip raised | 2,975 mm |
1501
