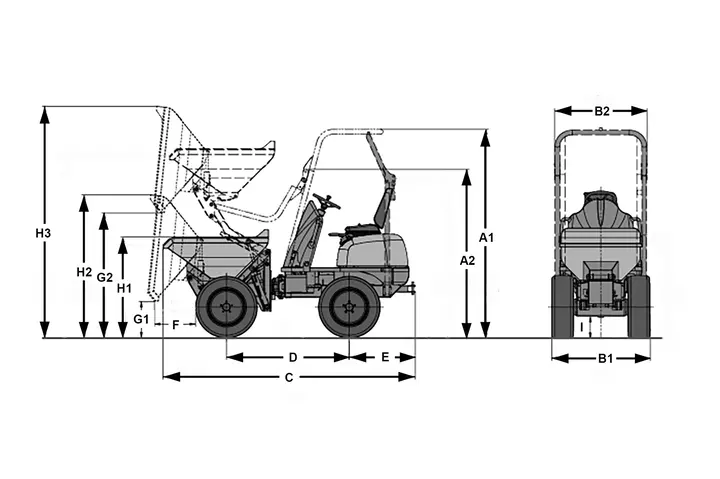

| Standard tyres | Narrow tires | Twin tires | ||
| A1 | Height ROPS | 2,580 mm | 2,580 mm | 2,580 mm |
| A2 | Height of ROPS tilted | 2,080 mm | 2,080 mm | 1,960 mm |
| B1 | Width of vehicle | 1,180 mm | 990 mm | 1,790 mm |
| B2 | Width of skip | 990 mm | 990 mm | 1,600 mm |
| D | Wheel base | 1,500 mm | 1,500 mm | 1,510 mm |
| E | Rear overhang | 810 mm | 810 mm | 810 mm |
| F | Dumping width | 510 mm | 510 mm | 510 mm |
| G1 | Dumping height max. | 465 mm | 465 mm | 465 mm |
| G2 | Dumping height max., high tip skip raised | 1,560 mm | 1,140 mm | 1,560 mm |
| H1 | Skip height | 1,230 mm | 1,230 mm | 1,230 mm |
| H2 | Skip height tilted | 1,770 mm | 1,770 mm | 1,770 mm |
| H3 | Skip height tilted, high tip skip raised | 2,860 mm | 2,440 mm | 2,860 mm |
| I | Ground clearance | 270 mm | 270 mm | 270 mm |
