Compact Track Loader ST37

ST37

Find a Dealer

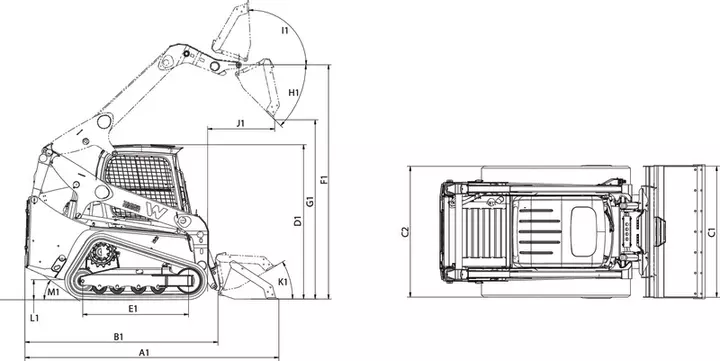

A1	Overall length with bucket	3,457 mm
B1	Overall length without bucket	2,716 mm
C1	Overall width with bucket	1,924 mm
C2	Overall width without bucket	1,829 mm
D1	Overall height	2,104 mm
E1	Length of track on ground	1,497 mm
F1	Hinge pin height	3,264 mm
G1	Dump height max.	2,559 mm
H1	Dump angle	40 °
I1	Bucket rollback at max. stroke height	94.1 °
J1	Dump reach	965.7 mm
K1	Bucket rollback at ground level	30 °
L1	Ground clearance	231 mm
M1	Angle of departure	33 °

Please note that the product range may vary depending on the country. Under certain circumstances, the contents / products shown here may not be available in your country. The illustrations, equipment, and data shown may also differ from the current product range in your country. Optional extras may be shown that are subject to an additional charge. Subject to changes.
The engines shown may differ from the current delivery range in your country. Special equipment is depicted here that may be subject to extra charge. Subject to change without notice.
