RTD-SC4 Trench Roller: New Look; Proven Compaction

The RT trench roller with the SC4 remote control provides proven compaction performance with greater serviceability, durability, and a best-in-class operator experience. With greater access to hydraulic components and fewer parts, the RT trench roller offers high reliability and a lower cost of ownership. The intuitive remote control with an LED display puts the data and controls in the operator's hands, eliminating the need to enter trenches, which enhances worksite safety.

RTD-SC4

Service Accessibility

Hydraulic components, motors, and connections are located on the outside of the drum making them more accessible.
Maintenance-free, the permanently lubricated exciter and drive systems require no oil changes for the first life, reducing downtime and total cost of ownership.
Wide opening hoods provide easy access to all other machine components, reducing time and effort for daily cleaning and maintenance tasks.

RTD-SC4

Worksite Safety

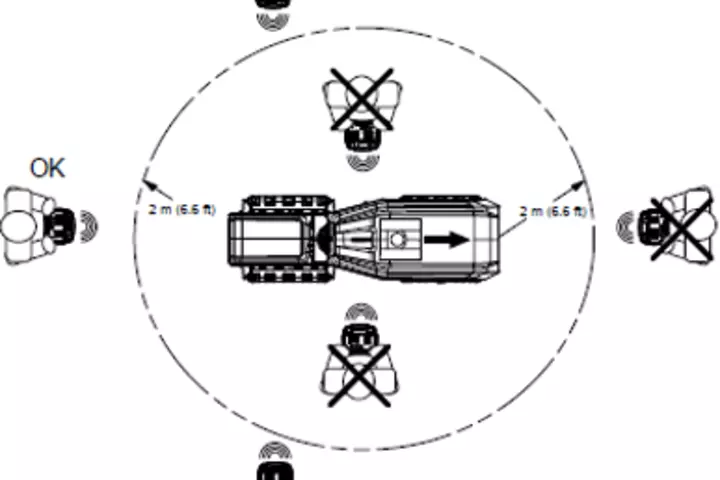

Operator and machine safety are at the forefront through proximity operation which keeps the operator 6.5ft to 98ft away from the machine in order to operate.

RTD-SC4

Patent Pending Return to Center

The machine will guide itself back to traveling in a straight line, without operator assistance, which is beneficial when working in applications with extended trenches, such as utility work.
The operator can turn this function on and off with a push of a button directly on the remote control.

RTD-SC4

All-in-One Personal Remote Control

All machine start-up and operation controls are located in the hands of the operator, removing the hazards of operating compaction equipment inside a trench or near other equipment.
Through the enhanced radio signal, the machine is able to communicate with the remote control, which uses an LED screen to show the operator the machine status, maintenance reminders, and error codes to aid in troubleshooting.

RTD-SC4

Tip Over Protection

If the machine is nearing its tipping angle, the operator will be alerted with a pre-tip notification on the remote control's LED screen. In the event that the machine does tip over, an alarm will be transmitted and the engine will shut down.
A two step unlocking process through the remote control protects the machine from engine damage that can occur by being started after tip-over.

More Features

RTD-SC4

Flexible Drum Width

Dual section drums offer flexible operating widths, easily converting from 32.3 in to 23.6 in. Depending on application needs, the design allows for a single machine to operate at two different widths to accommodate varying field conditions or workspace requirements.

RTD-SC4

On Board Battery Charger

An on-board charger helps ensure that the remote control has available power at all times on the jobsite. Two batteries come with the remote control, so that one can be conveniently charging, even while the machine is in use.
The LED display on the remote control screen will notify if the second battery is not located in the charger.

RTD-SC4

Patent Pending Scraper Bar

The patent pending internal drum scraper bar loosens any built up debris inside the drum and keeps the drum from seizing up. Once dried, the debris will exit the drum.

RTD-SC4

Horn and Strobe Beacon

With jobsite safety as a priority, the machine is equipped with a strobe beacon and horn to signal to the operator and others that it is ready to use.
To minimize the potential of battery draw over an extended amount of time, the strobe beacon will remain on to remind the operator to fully shut down the machine.
