DT23

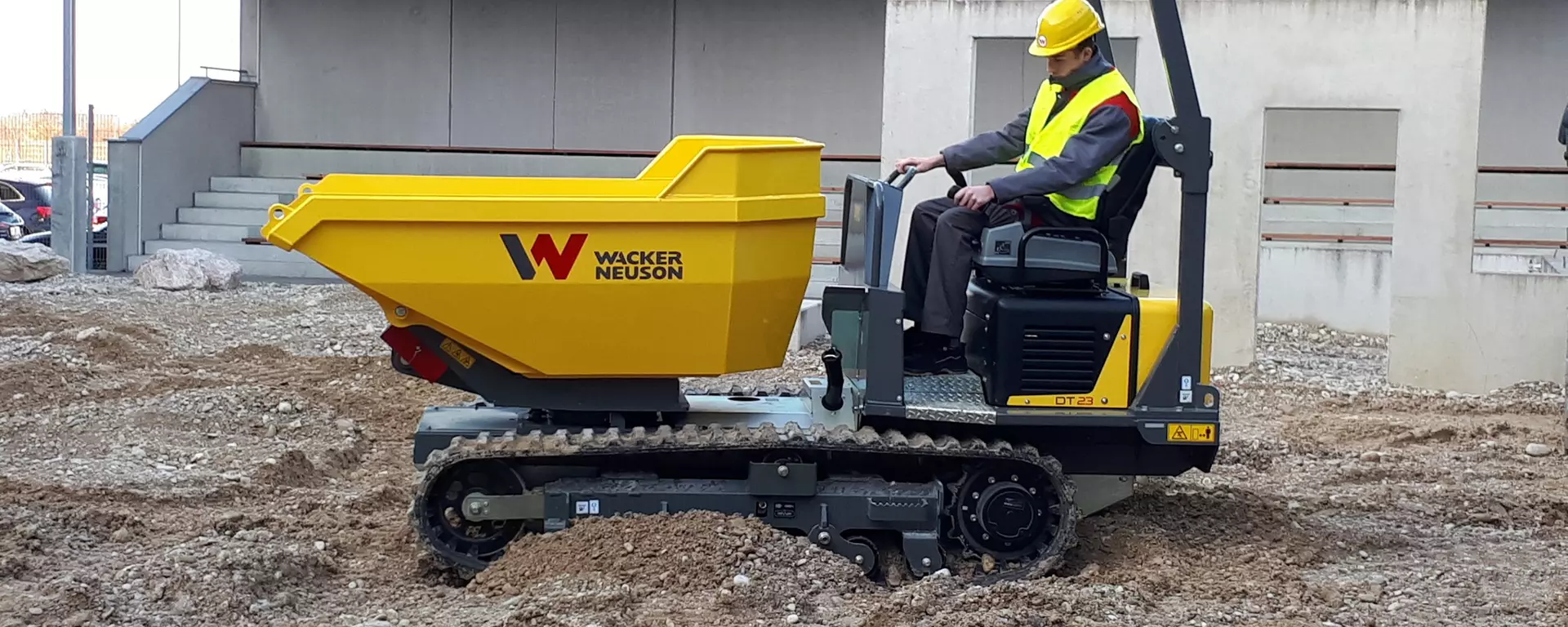

DT23 in use on the construction site

Technical Data

Metric Imperial
Gradeability 27 % 27 %
Operating pressure 2,610 psi 180 bar
Travel speed 4.7 MPG US 7.5 km/h
Length 130.1 " 3,304 mlai
Operating weight (min.-max.) 4,993.5 lb 2,265 kg
Width 51.7 " 1,312 mlai
Height 99.3 " 2,523 mlai
Payload max. 5,070.6 lb 2,300 kg
Cylinder 4
Cylinder capacity 91.4 Inch3 1,498 cm3
Effective power 24.8 hp 18.5 KW
Nominal Engine speed 2,300 1/min 2,300 1/min
Stroke 78 mlai 78 mlai
Bore 78 mlai 78 mlai
Engine type Diesel engine
Engine Manufacturer Kubota
Engine Designation V1505
Operating pressure hydraulics 2,610 psi 180 bar
Flow rate 28 gal/mi 106 l/min
Flow rate max. 30.4 gal/mi 115 l/min
Tank capacity 5.3 gal US 20 l
Hydraulicpump Variable displacement and gear pump
Shipping weight 4,828.1 lb 2,190 kg
