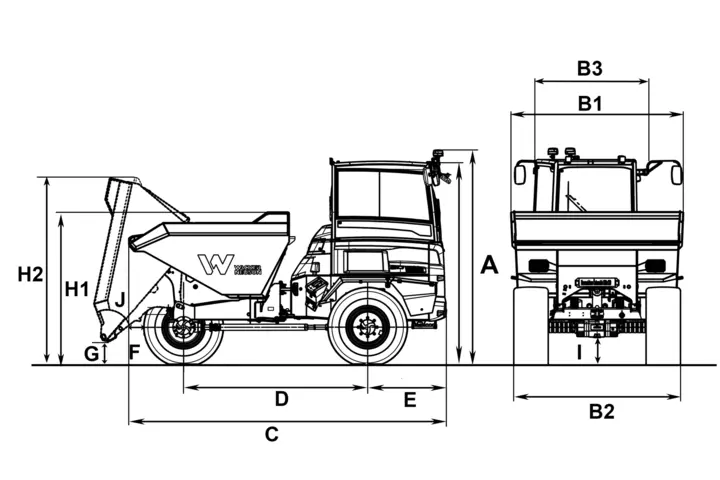

| A | Height with cab | 2,974 mm |
| A | Height of cab with rotating beacon | 3,139 mm |
| B1 | Width of cab | 1,731 mm |
| B2 | Width of vehicle | 2,420 mm |
| B3 | Width of skip | 2,504 mm |
| C | Total length of cab | 4,660 mm |
| D | Wheel base | 2,700 mm |
| E | Rear overhang | 1,157 mm |
| F | Dumping width | 729 mm |
| G | Dumping height max. | 333 mm |
| H1 | Skip height | 2,073 mm |
| H2 | Skip height tilted | 2,740 mm |
| I | Ground clearance | 390 mm |
| J | Dumping angle | 49 ° |
